SKU NCP-SHWK

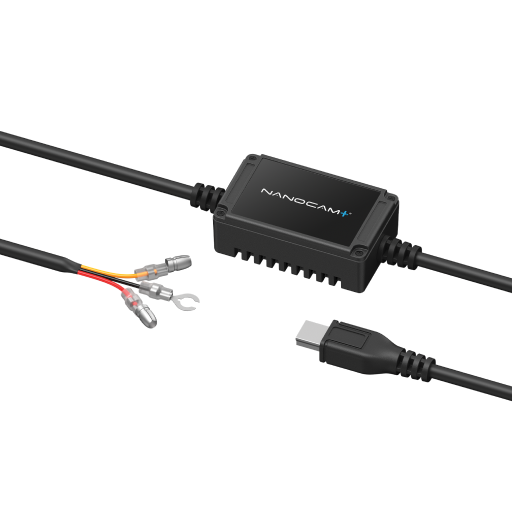

Smart 3-Wire Hardware Kit

Smart 3-Wire Hardware Kit

The Nanocam Plus NCP-SHWK Smart 3-Wire Hardwire Kit simplifies and enhances your dash camera setup and removes the need for messy cables to power your dash cam in your vehicle interior. This handy system monitors your vehicle even while parked and automatically detects when it is in Park Mode to ensure smooth power transition. The kit is compatible with smart Stop/Start systems and smart servos, and the 12V/24V input voltage is compatible with passenger and commercial/utility vehicles.

Read More
  • 3-Wire Dash Camera Hardwire Kit: The kit is compatible with smart Stop/Start systems and smart servos.
  • No More Messy Cables: Hardwire your dash camera to hide power cables for a clean and clear dashboard.
  • Constant Power: Provides constant power to dash cameras, even when the engine is turned off.
Installation Difficulty
EASY MEDIUM PRO
Regular price $49.99
Regular price Sale price $49.99
Sale
Full extended warranty is 1 year. Full overview click
View full details

What’s in the Box?
ATS Fuse Cable x2
Mini Fuse Cable x2
Micro2 Fuse Cable x2
Micro Fuse Cable x2
Mini USB Cable
Type-C Cable (via included adaptor)
You may also like
SKU NCP-SHWK

Nanocam Plus NCP-SHWK Smart 3-Wire Hardware Kit

The NCP-SHWK Smart 3-Wire Hardware Kit is compatible with most modern smart Stop/Start systems and servos. It enables constant power delivery to dash cameras even when the engine is turned off. Say goodbye to messy cables with the 3-Wire Hardwire Kit, which automatically detects when the vehicle is in Park Mode to ensure a smooth power transition.
A battery-drain protection device is built in to prevent your dash camera from draining your car battery. The Fuse Tap Kit contains four fuse tap sizes, ensuring that the correct fuse tap will provide continuous power to your dash cam even when the vehicle is turned off.

NCP-SHWK
Key Features

3-Wire Dash Camera Hardwire Kit

The kit is compatible with smart Stop/Start systems and smart servos.

No More Messy Cables

Hardwire your dash camera to hide power cables for a clean and clear dashboard.

Constant Power

Provides constant power to dash cameras, even when the engine is turned off.

Fuse Tap Options

The kit has four different fuse tap sizes for fuse box connection.

Battery Drain Protection

Features multiple cut-off voltages to prevent your dash camera from draining your car battery.

12V/24V Input Voltage

Compatible with passenger, commercial and utility vehicles.

Auto Detection

Automatically detects when the vehicle is in drive or park mode.

NCP-SHWK
What’s in the Box

ATS Fuse Cable x2

Mini Fuse Cable x2

Micro2 Fuse Cable x2

Micro Fuse Cable x2

Mini USB Cable

Type-C Cable (via included adaptor)

Cable Tiers x4

User Guide

NCP-SHWK
Product Spec

Hardwire Kit: Cables



Red Input Connector:

Bullet Plug OD4MM

Black Input Connector

Round ring terminal, nickle plated, OD10MM ID6MM L20MM

Input Cable

Three cables (Red: 12/24V accessory, Yellow: 12/24V Power, Black: Ground), 2x22AWG, Conductor, SR-PVC Insulation, PVC jacket, UL1015/2586, 1M, 150MM, Clearence

Output Cable

Three cables, 2x22AWG Conductor; SR-PVC Insulation, PVC Jacket; UL/1007/2464, 3M

Hardwire Kit: Control Box
Flame retardent ABS 94V0, CONTAINS DC-DC Converter



Input Voltage Min

10V

Input Voltage Max

32V

Output Volume

No Load: 5.1V
0.5A Load: 5.1V
1A Load: 5.1V
2A Load: 5.1V

Output Power

DC5V 2.5A MAX

Battery Drain Protection Bands

11.8V/23.6V
12.0V/24.0V
12.2V/24.4V
12.4V/24.8V

Other Protection

Reverse Polarity; Short Circuit; Over Temperature; Over Voltage; Over Load

Working Temp

-20°C TO 65°C

Fuse Cables



ATS (Standard) Fuse Cable

Cable with 5A ATS Fuse, L125MM

Mini Fuse Cable

Cable with 5A mini fuse, L25MM

Micro2 Fuse Cable

Cable with 5A micro2 fuse, L25MM

Micro Fuse Cable

Cable with 5A micro fuse, L25MM

Accessories



Type-C

Type-C Adaptor

Cable Ties

Quick Fix Cable Tie, Black PA66, UL94V2, -20°C to 105°C, 8kgs, W2.5MM L80MM

NCP-SHWK
Installation
DIY Installation
Feeling handy? Enjoy convenience? Do-it yourself.
All of our products can be DIY (Do-It-Yourself) installation, at varying levels of difficulty. You can find step-by-step guides in our personalised product user manuals.
Manual Download
Download PDF
